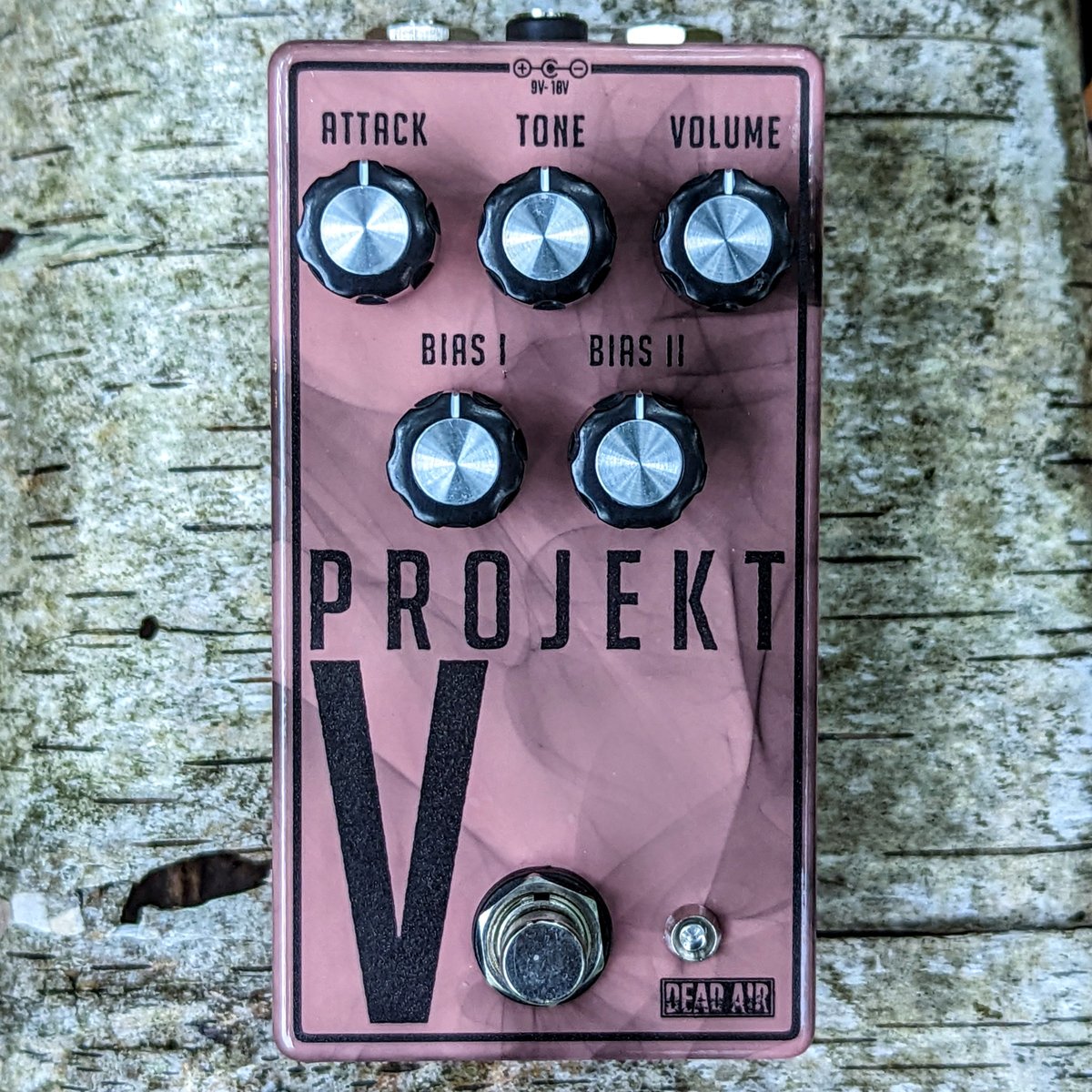

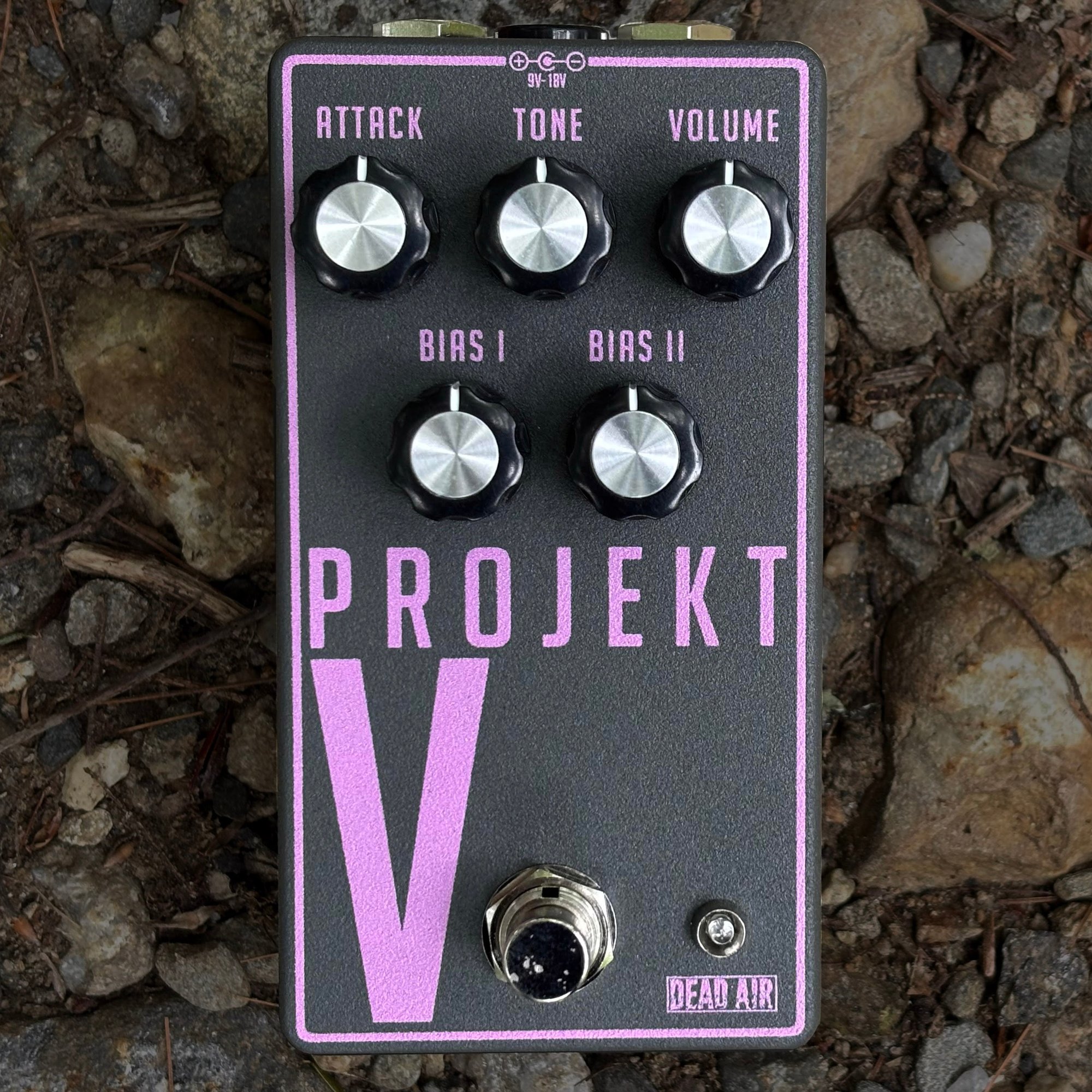

PROJEKT V FUZZ

All Items have an approximate 1 - 2 week build time after receiving orders.

The WEM Project V is an extremely obscure eight transistor fuzz with a cult status for being the fuzz used by Brian Eno and Robert Fripp on Here Come The Warm Jets. Its only tonal controls came via two switches and two internal bias trim pots that Eno infamously adjusted to taste.

The Dead Air Projekt V is a recreation of the original circuit with the Bias controls moved for external control, and a modified version of the original tone control that reaches all 4 of the old school toggle switch possibilities and much more. The Projekt V is a wild ride. It can hiss and crumble, and sound on the edge of collapse, or recreate the devastation of a full bodied amp with everything on 10. And yes, it can do the Fripp lead sound of virtually infinite sustain as well!

ATTACK
Controls the amount of fuzz in the circuit.

TONE
A unique modification of the original unit's switches, this knob has a wide and interesting sweep. All the way down is full bodied, sweeping up to around 11 o'clock will scoop the midrange, and above 3 o'clock becomes a focused treble assault. Due to the nature of the circuit, the TONE control does affect the output volume as well. All the way down has the highest output, and the output gradually diminishes as the tone control is raised.

VOLUME
Sets the overall output level.

BIAS I
Suggested starting point: 1 o'clock. Below 9 o'clock this control will starve the circuit of enough power that it will no longer produce any sound. For those seeking interesting textures and crumbling fuzz sounds, settings around the threshold of where this occurs will be of particular interest. Adjust to taste!

BIAS II
Suggested starting point: 1 o'clock. Depending on other settings, this control will start to create gated fuzz sounds when positioned around 3 o'clock or higher. Below 3 o'clock the hissy and occasionally spitty nature of this fuzz lives. Adjust to taste!

POWER
Standard 'Boss-style' 9-18V DC Power with a Center Negative tip
Note that the original WEM Project V did operate at 18V. Projekt V sounds great anywhere between 9-18V and it is worth experimenting to see what voltage you prefer.
Do Not Exceed 18V.
The current draw is 12 mA or lower, depending on Bias settings.
No option for battery power.
